Firing Melting Zirconia Ceramic High Alumina Crucible For Calcination

Name: Firing Melting Zirconia Ceramic High Alumina Crucible For Calcination
Brand: HENGYUAN
Price: 1 USD

Wholesale Firing Melting Zirconia Ceramic High Alumina Crucible For Calcination from china suppliers

Brand Name : HENGYUAN

Model Number : Alumina Ceramic Crucible

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : $1-$20

Payment Terms : L/C, T/T

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : Alumina Ceramic Crucible

Color : Yellow Or White

Shape : Customization

Usage : Industry Usage

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

Alumina Ceramic Crucible For Analyzing And Firing Processes With High Compressive Strength

Product Specifications

Material	Alumina Ceramic Crucible
Color	Yellow Or White
Shape	Customization
Usage	Industry Usage
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu China
MOQ	100 PCS
Package	Carton

Product Description

Alumina ceramic crucible is an essential kiln tool for firing ceramics, manufactured from high-quality refractory clay. This material maintains exceptional stability at elevated temperatures, preventing deformation or damage while protecting ceramic ware from contamination by gases and harmful substances during the firing process.

Technical Specifications

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

Product Images

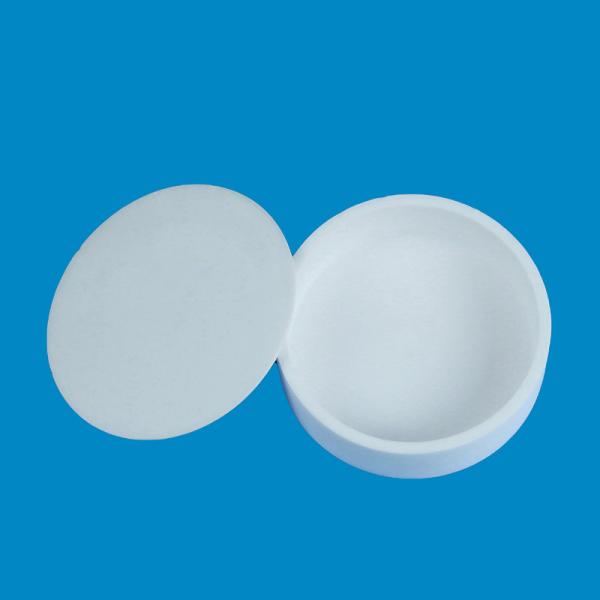

Firing Melting Zirconia Ceramic High Alumina Crucible For Calcination
